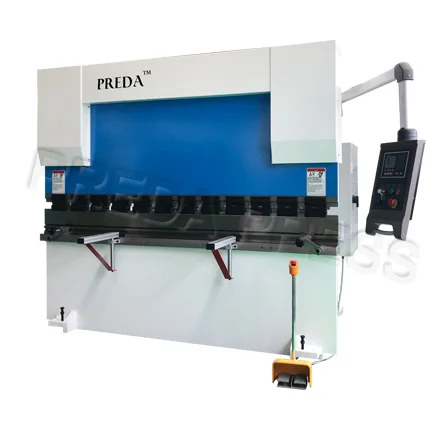

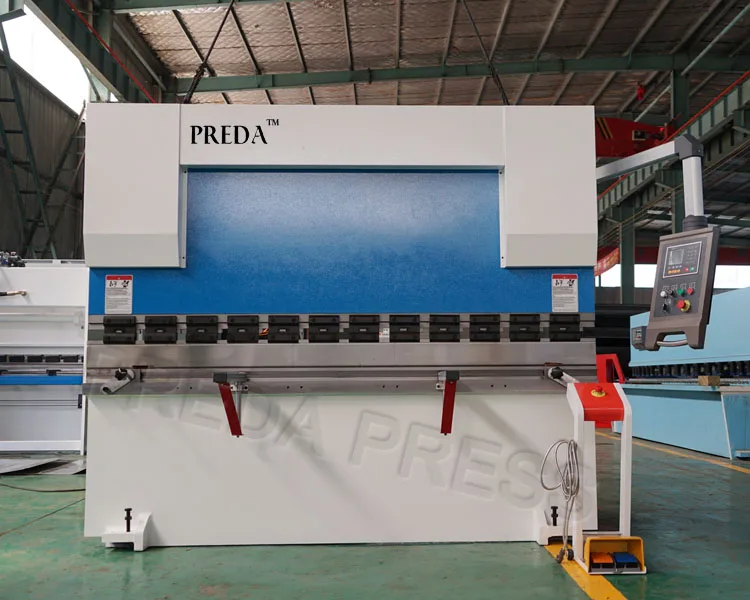

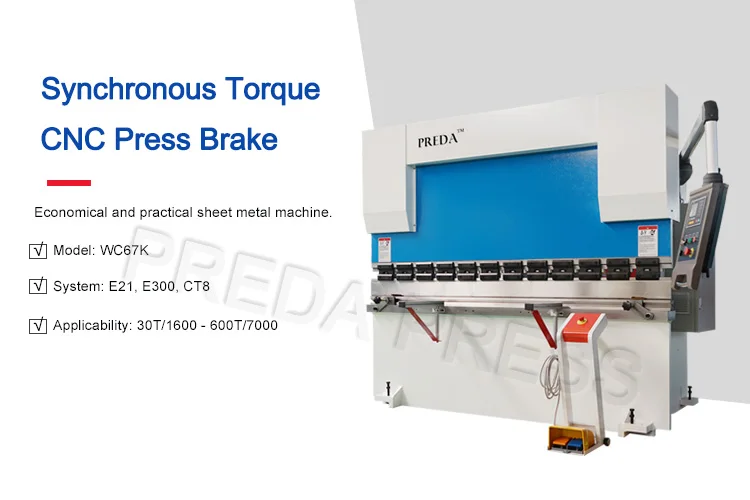

Preda CNC metal 63T hydraulic bending machine E21 system press brake on sale
|

Preda CNC metal 63T hydraulic bending machine E21 system press brake on sale

Brand： Preda
Model： WC67K  63TX2500
Stock： 3SETS
Details
Review(0)

General characteristics apply to all our NC press brake series,

High mechanical strength and great rigidity is due to integrated welded steel structure.

Hydraulic powered system is to realize precise working power, easy and safe operating.

Simplified upper dies clamp with micro-adjustable wedges for high precision

Pre-installed upper dies with 88° angle andsolid block lower die with four face multi “V” frame.

Back gauge is equipped with Euro-made ball screw and slick rod for fast and precise back gauge transmission.

Finger pin for flexible and precise positioning of back gauge can be adjusted up and down as per needs.

Steel/nylon front supporting arms are equipped to transfer workpieces.

Preda has the capability providing customized tools(blades & molds) for users' special requirements.

PLC controls hydraulic system and the movement of back gauge to achieve efficient and highly precise positioning.


Further devices can be equipped with more characteristics:

Safety device with light/laser guards the fingers well.

Deflection compensation system or the crowing

controlledby NC system beneath the work table is for more precise bending results.

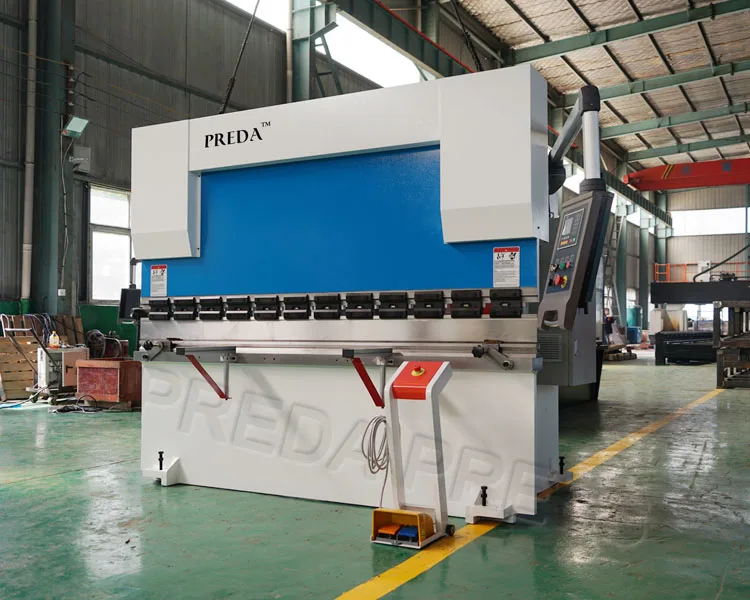

Preda CNC metal 63T hydraulic bending machine E21 system press brake on sale
Product Overview


The hydraulic press brake machine comprises a bracket, a worktable and a clamping plate, the worktable is placed on the bracket, the worktable is composed of a base and a pressure plate, and the base is connected with the clamping plate through a hinge, the base is composed of a seat shell, a coil and a cover plate, and the coil It is placed in the recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, and after the power is applied, the platen is attracted to the platen, thereby clamping the plate between the platen and the base. Thanks to the electromagnetic clamping, the pressure plate can be made into a variety of workpiece requirements, and the workpiece with the side walls can be processed.
FEATURES AT A GLANCE
(1) Estun E21 NC control system.(2) Powered Depth Y-axis & Back gauge X-axis.(3) DELTA Inverter controlled back gaug.(4) HIWIN Ball screws & Polished rod with 0.01/0.05mm accuracy.(5) Plate Support Arms.(6) Germany Bosch-Rexroth Hydraulic.(7) Germany EMB Tubing connector.(8) Germany Siemens Main Motor.(9) Telemecanique/ Schneider Electrics.(10) Hydraulic & Electrical overload protection.(11) Top and Bottom Tooling (86°,R0.6mm).

00:00
00:44
PRODUCT CONFIGURATION

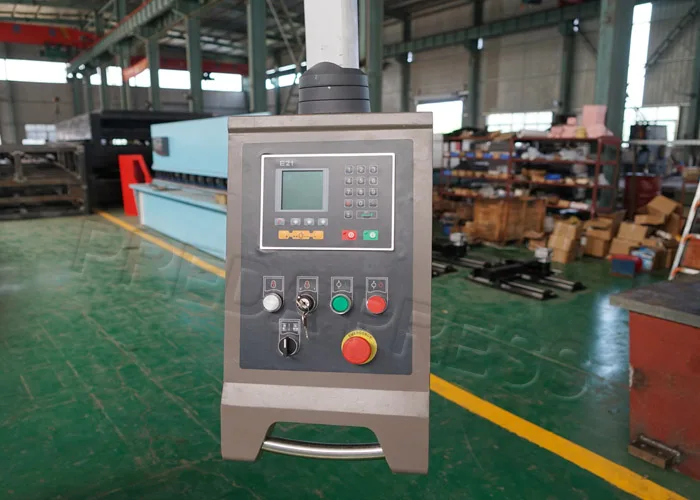

E21 system controller

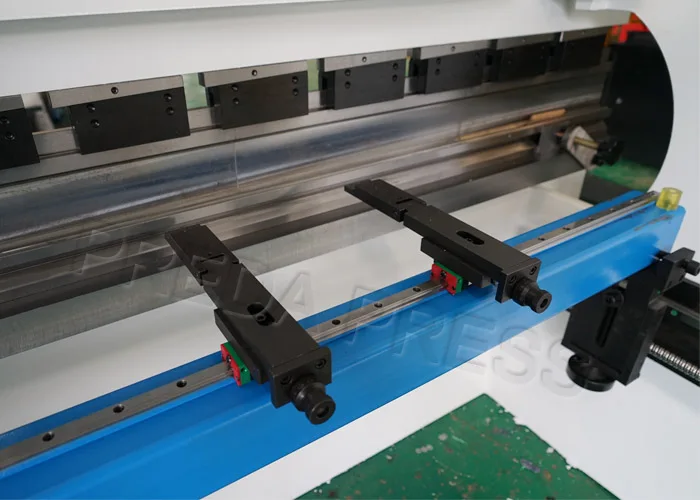

Back guage HIWIN linear guide

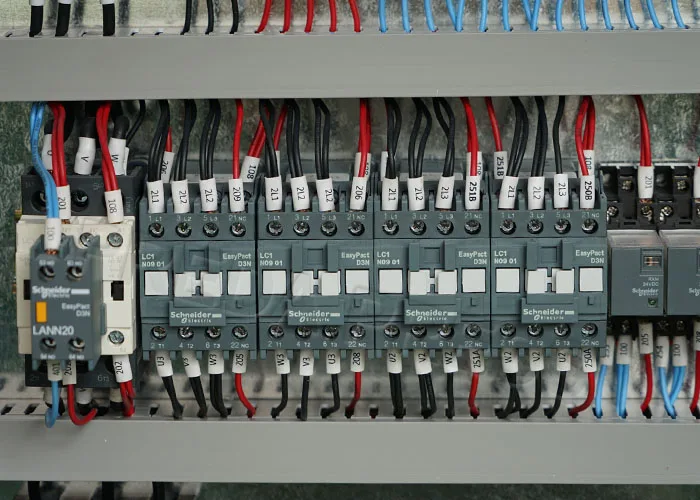

Schneider Electrics

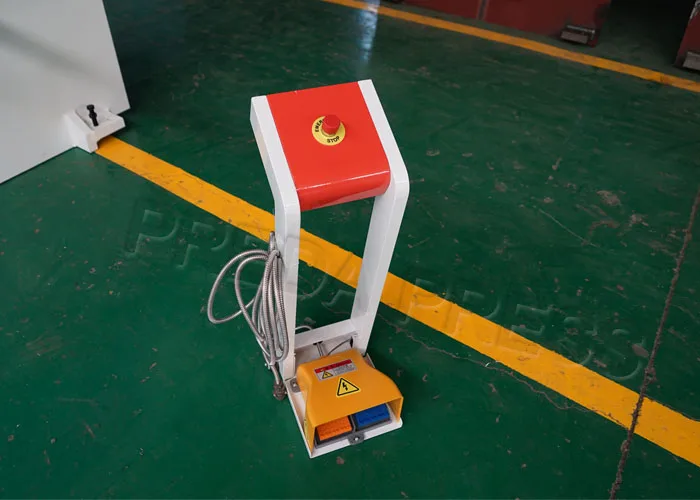

South Korea KACON Pedal Switch

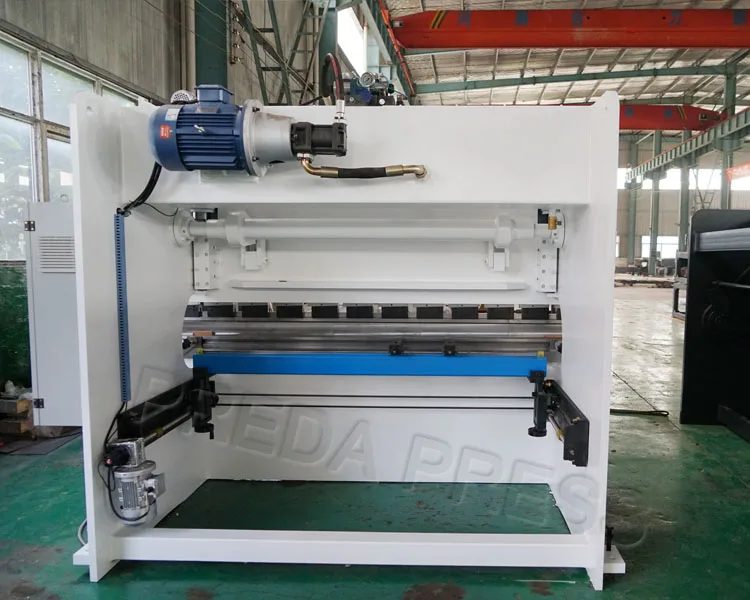

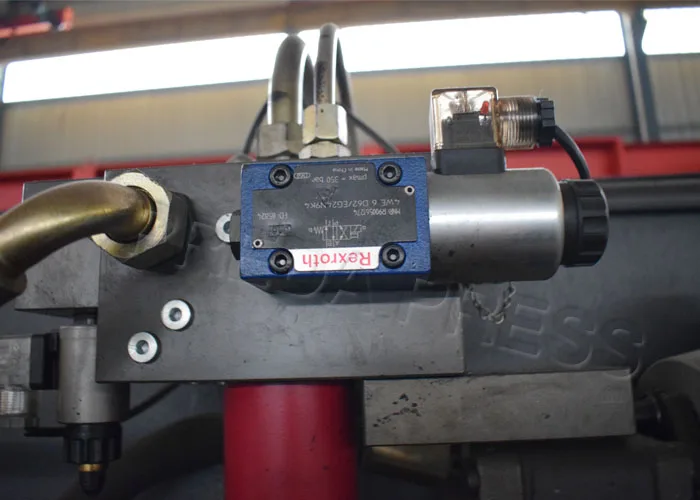

Germany Bosch-Rexroth Hydraulic valves

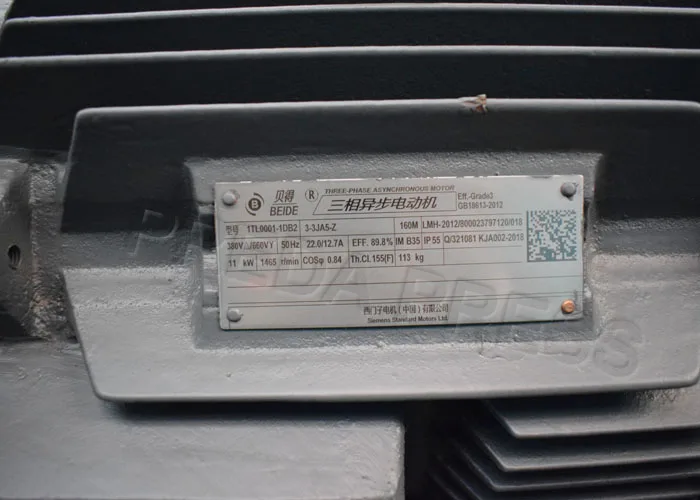

Germany Siemens Motor
PRODUCT SPECIFICATIONS
No.
Model
WC67K 63T/2500
WC67K 63T/3200
1
Pressure (KN)
630
630
2
Length of table (mm)
2500
3200
3
Distance between columns (mm)
2050
2510
4
Throat depth (mm)
250
250
5
Stroke (mm)
120
120
6
Open height (mm)
340
340
7
Main power (kw)
5.5
5.5
8
Weight (kg)
3800
4600
9
Size (mm)
2500*1600*2200
3200*1600*2200
SALES AND SERVICE NETWORK

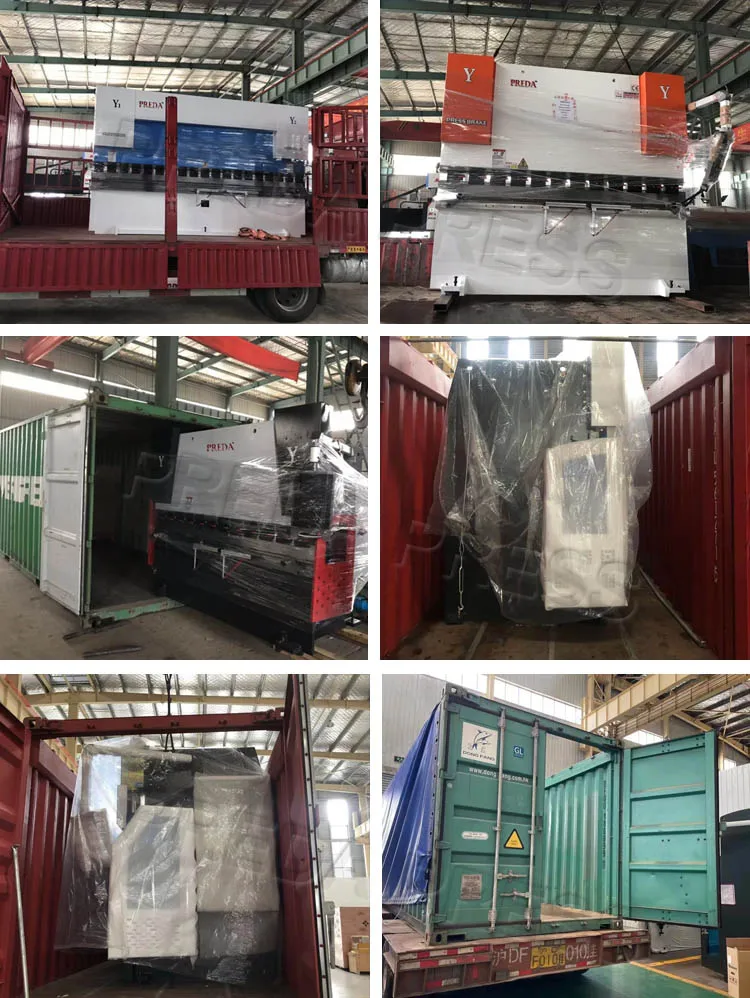

Packaging & Shipping
Company Profile
      Anhui Preda Machinery Manufacturing Co., LTD. is a manufacturing company. Our company is committed to the production of HVAC duct production machines. Our company has more than 10 years of production and export experience. Anhui Preda Machinery Manufacturing Co.,LTD is located in Hongyang Industrial Park, Bowang Town, Bowang District, Ma'anshan City, Anhui Province, China. It is only 20 kilometers away from Nanjing International Airport, which also facilitates customers from all over the world to come to our factory to have a convenient face-to-face conversation and visit.        We manufactured and exported auto duct lines, CNC plasma cutting machine, TDF flange forming machine, pittsburgh lock forming machine, spiral duct forming machine, elbow making machines, TDC flange forming machine, oval duct forming machine and so on. All our machines are popular in the ventilation pipe manufacturingindustry. We also exported CNC hydraulic press brake machine, CNC hydraulic shearing machine with factory price and best quality. All of our duct machines are in stock, we will manufactured the most of standard commonly used machine as inventory, so if our customers need, we will arrange delivery all the time.       We also have our after-sale servie teams, we support our engineers overseas service. When you met the problems, we will help you solve the problem in time, and all the machines we will have a lifetime warranty. We use our sincerity to serve our customers and expect more customers to choose Anhui Preda Machinery Manufacturing Co.,LTD.
FAQ

1. Are you factory or sales business?

We are the professional manufacturer in China, for the duct machines making and the industry production machines manufacturing.

2. How to get a accurate quotation from Preda Machine?

Provide the machine name you want, the specifications you need and the quantity of machine, we shall quote accordingly!

3. What's the shipping cost from China to your country?

Please kindly tell us your nearest port to your place. We have reliable shipping forwarder to insure cheap, safe, convenient and timely delivery via sea.

4. Payment terms, MOQ, warranty, FOB.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

5. What about commissioning service?

We can offer commissioning service, the buyer need to pay for all the transport, salary, hotel, meals for Preda Machine technicians caused during the service period.

6. What's policy for guarantee and broken parts?

Warranty period of equipment is two years, during which the broken parts and spares caused by quality can be offered free. After guarantee period, all broken parts or easy wearing parts will be charged in a most competitive price ever in the market!


Specification,

Model

Nominal

Force

(KN)

Worktable

Length

(mm)

Distance

Between

Columns (mm)

Throat

Depth

(mm)

Slider

retraction

(mm)

Max. Open

Heigth

（mm）

Working

Power

(Kw)

G.W

(Kg)

Dimension

(LxWxH mm)

40/220040022001650200100/1133042900

2360*1470

*2140

40/250040025002000200100/1133043500

2600*1555

*2135

50/250050025002150240100/113405.54000

2500*1400

*2000

63/250063025001900250120/103605.54500

2600*1600

*2300

63/320063025002600250120/103605.55500

3300*1600

*2300

80/250080025001990280120/103607.55200

2600*1730

*2500

80/320080032002600320120/103807.56600

3300*1700

*2300

80/400080040003100320120/103807.57600

4100*1700

*2300

100/3200100032002600320120/83807.57200

3300*1800

*2400

100/4000100040003100320120/83807.59400

4100*1800

*2400

100/4500100045003100320120/63807.59900

4500*1700

*2420

100/5000100050004000320120/63807.510500

5050*1540

*2780

125/2500125025001850320130/6390118000

2600*1725

*2570

125/3200125032002250320130/6390119200

3300*1850

*2570

125/3600125036002950320130/6390119800

3670*1850

*2600

160/2500160025001840320200/64401110000

2570*2110

*2760

160/3200160032002600320200/64501111700

3300*1600

*2600

160/4000160040003200320200/64501113200

4100*2000

*2600

160/6000160060004820320200/64501120000

6100*2000

*3200

200/3200200032002600320200/35001113000

3300*2100

*2800

200/4000200040003100320200/35001114500

4100*2100

*2900

200/5000200050004000320200/35001116200

5100*2100

*3000

250/3200250032002600350250/355018.515000

3300*1900

*3200

250/4000250040003200350250/355018.516500

4100*2200

*3500

250/5000250050004000350250/355018.519800

5100*2200

*3500

250/6000250060004800350250/355018.525000

6100*2200

*3500

300/3200300032002600350250/2.55502223000

3300*1900

*3250

300/4000300040003200400250/35502224260

4100*1950

*3250

300/5000300050004000400250/35502227000

5100*2600

*4000

300/6000300060005000400250/35502229200

6100*2600

*4200

300/7000300070005620400250/35502231500

7100*2600

*4400

320/7000320070005620400250/2.56002232500

7100*2600

*4400

350/3200350032002600400250/2.56803025000

3300*2000

*3250

350/4000350040003100400250/2.56803026260

4100*2000

*3300

350/6000350060005100450250/2.56803031200

6100*2600

*4200

350/7000350070005620450250/2.56803034500

7100*2500

*4500

400/3200400032002500320250/2.538018.530210

3300*2500

*3600

400/4000400040003100350300/2.56203031000

4100*2700

*3800

400/5000400050004100400250/2.56203035000

5100*2180

*3500

400/6000400060004820400320/5.56203039000

6100*2800

*4200

400/6500400065005100400320/2.5620304400

6100*2800

*4300

400/7000400070005600400320/2.56203049000

7100*2750

*4800

400/8000400080006400400250/2.56002254000

8100*2750

*4800

500/4000500040003100400320/2.57103042000

4100*2000

*3300

500/5000500050004100400320/2.56303749000

5100*3000

*4400

500/6000500060004820400320/2.56303756000

6100*3000

*4700

500/7000500070005620400320/2.56303763000

7100*3000

*4900

500/8000500080005620400320/2.57103070000

8100*3200

*4900

600/4000600040003200400320/2.57103749000

4100*2965

*4900

600/5000600050004000400320/2.57103756000

5100*2965

*4700

600/6000600060004820400250/2.56303763000

6100*2965

*4700

600/7000600070005620400320/2.56303770000

7100*2965

*4900

600/8000600080006000400320/2.57103777000

8100*2965

*5000
