Product Detail

Gorelocker - Hydraulic Elbow Making Machine

Brand: Preda
Model: XMWT-H
Stock: 5SETS
Specification: 1250mm
Send an inquiry: jason@predamachine.com
Details
Review(0)

gorelocker

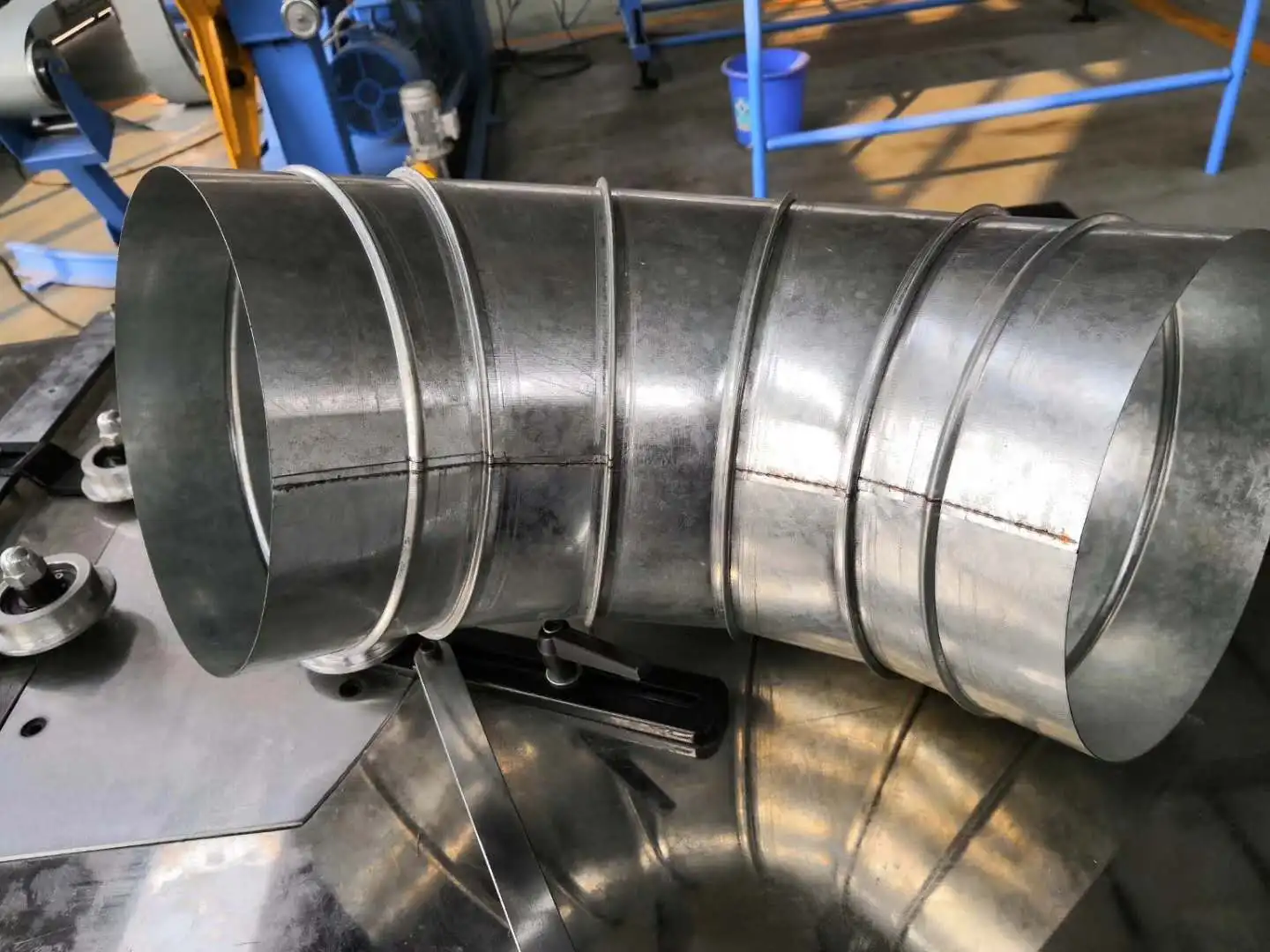

This hydraulic elbow making machine( hydraulic gorelocker) is specially used to process 0.4-1.5mm galvanized sheet to connect joint of round ducts and elbow ducts.

There're two workbenches, one is for folding round sides, another is for connecting joint and locking seam of joint.

Besides, workbenches height is adjustable, which is convenient for the shift of male and female lock forming.

Hydraulic power is used to the rotary of rollers, speed can be adjusted.

Moving of rollers also adopt cylinder drive, which makes work stalble and efficient.

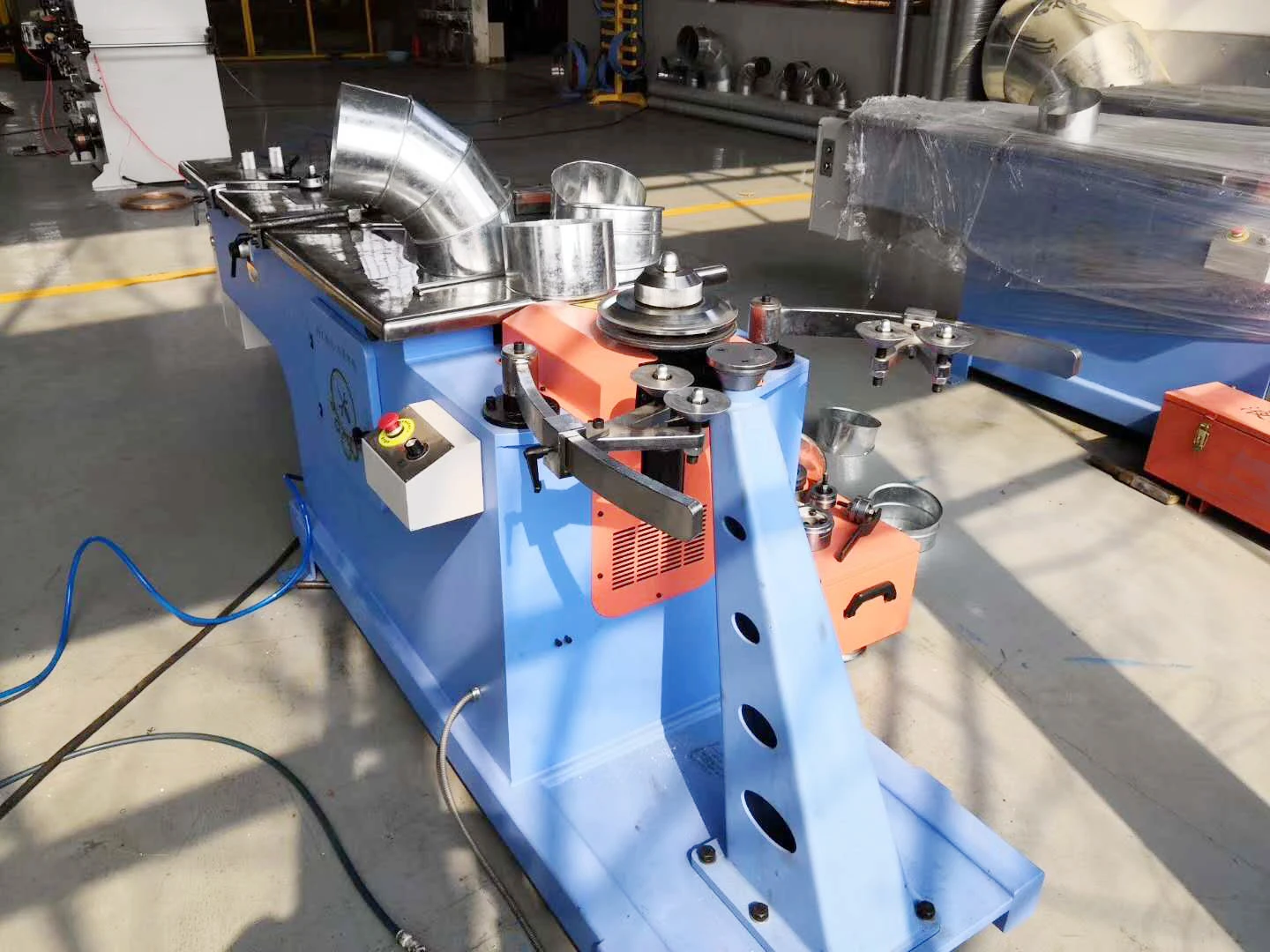

hydraulic gorelocker


Key words:

round duct machine,

gorelocker,

round duct elbow machine,

elbow making machine,

hydraulic elbow former,

elbow forming machine,

duct corner machine


Gorelocker

Main features:

1. Double working stations.

gorelocker hydraulic stations

2. Higher production speed.

3. Flanging speed Up to 4m per minute.

4. Higher capacity.

5. Material thickness: up to 1.5mm Galvanized steel &1.0mm stainless steel.

6. Improved seam's quality.

7. Optimized roller's profile.

8. Virtually no maintenance.

9. No lubrication & all rotating parts made of hardened, high grade steel.

10. Manufacture of segment bends, reducers, end covers and offsets & attachment of cams for METU system.

11. Two separate workstations achieve high flexibility: a flanging station and a closing station.

12. Machine is always ready for operation without time-consuming conversion.

Gorelocker two stations

Product Paramenters
Max.speed
120m/min
Diameter range
125-1250mm
Black steel
0.4-1.5mm
Galvanized sheel
0.4-1.5mm
Stainless steel
0.4-1.0mm
Power
4kw
Oil capacity
55L
Dimension
2800*1000*1100mm
Weight
760kg
