CNC 8+1axis hydraulic press brake from PREDA MACHINE

CNC Press Brake Machine WC67K 160T/3200mm
1. 8+1axis version as per ur requirements. (Y1+Y2+X1+X2+Z1+Z2+R1+R2+V)

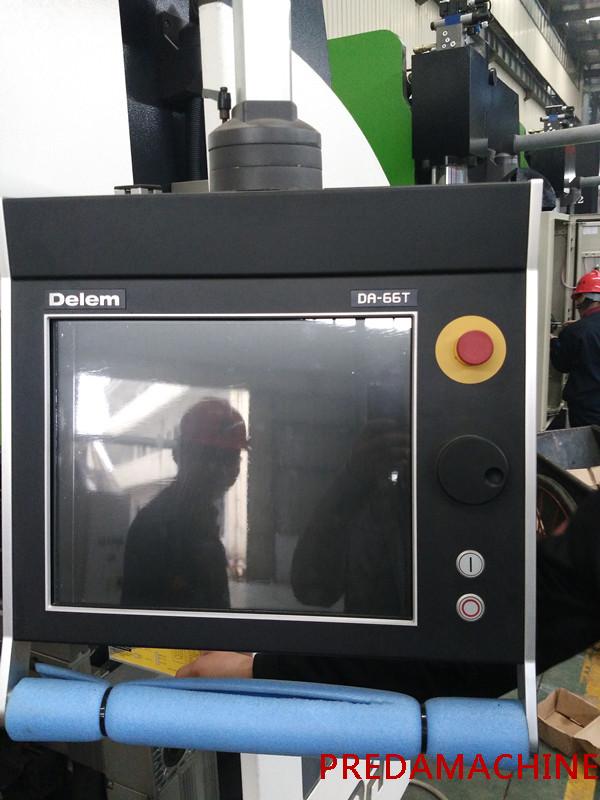

System: Delem DA-65W/DA-66T(specification pls take attached files received fm Delem for ref.)

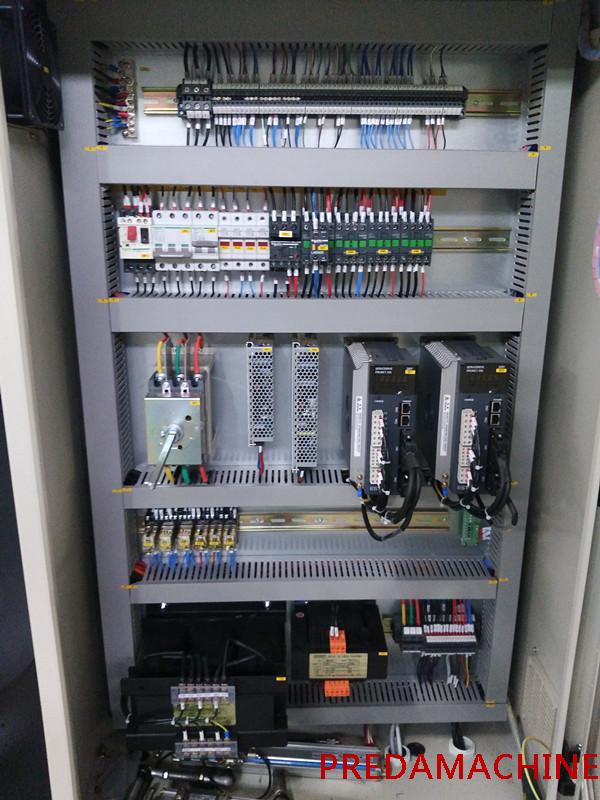

(the servo motors,drive and electric box are supplied together with system by Delem's sole agent Estun in China)

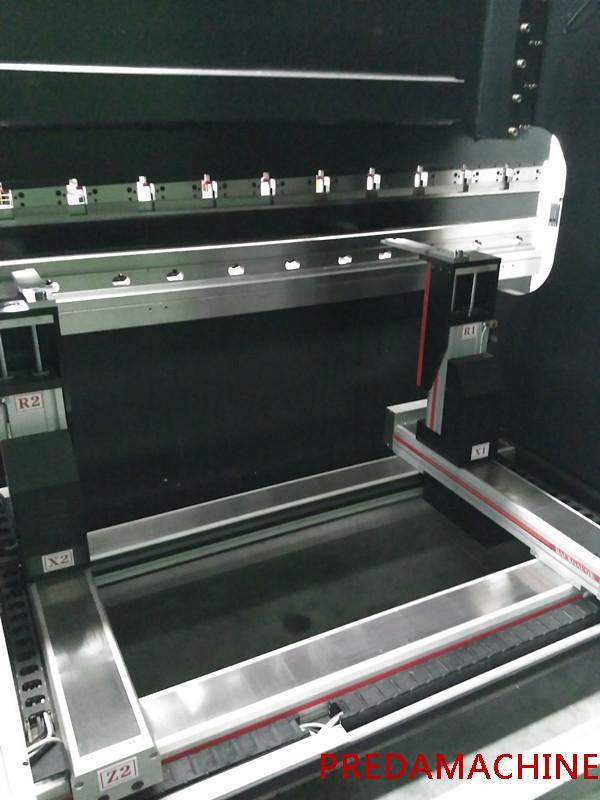

Back Gauge: Hiwin (8+1axis back gauge. pls take attached photo for ur ref.）
Main Motor: Germany brand Siemens
Oil Pump: Germany brand "Voith"

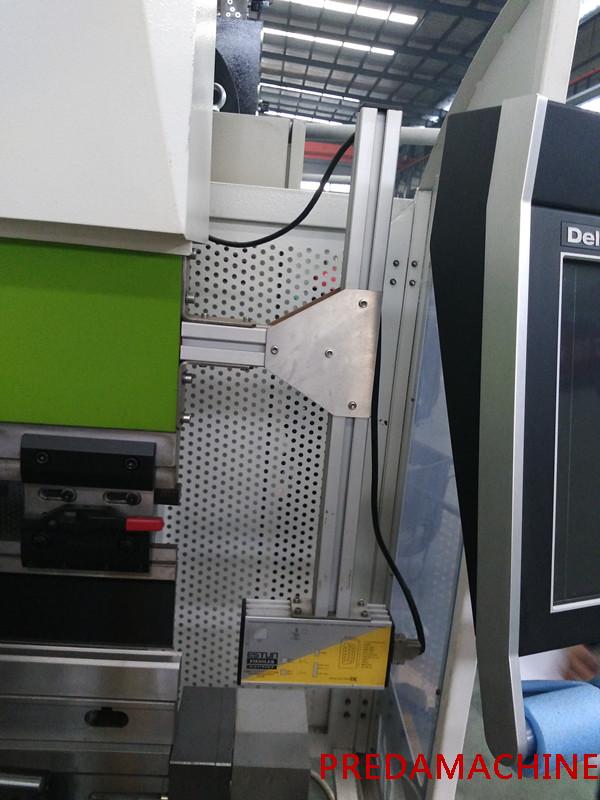

Laser Safty: Estun
Valve: Germany brand "Bosch"
Hydr-Cylinder: China made "Taifeng" brand
Deflection Compansation System Type: Mechanical (more compansation points compared to Hydraulic version)
Molds composition and type: CNC mold in 42CrMn
Molds details: accdg to ur attached picts, we suggest u use 3sets of Molds in 5parts, namely,
a. 30° upper Mold (local big mold factory made, standard be accdg to Amada item 106)
b. Standard upper Mold (local big mold factory made, standard be accdg to Amada item 202)
c. Flattening upper Mold
d. Standard Lower Mold (local big mold factory made, standard be accdg to Amada item 202)
e. Combined Lower Molds with a 30° Lower Mold and Flattening Lower Mold
