Characteristics,
1. Optimized linear structure makes the whole line beautiful in appearance and fast in production
2. 11 rollers are equipped for levelling to make sure plate gets even.
3. This machine is a material-saving facility with only less than 20mm wasted plates per roll.
4. Highly advanced servo system controls the whole production line very well so the products produced are perfect in appearance and precise in size.
5. One man is capable to handle the whole line
6. Workpieces counting system to count for one-day and accumulated quantities.
Specification,
| Model | Plate Thickness (mm) | Max. Plate Width (mm) | Speed (mm/min) | Weight (Kg) | Dimension (L×W×H, mm) |
LINE III
| 0.5-1.2 | 1300 | 16000 | 3000 | 3500×2500×1300 |
More details of Preda Duct Line 3 as below!
Duct Line III (capable of 1.2mm galvanized steel and 1300mm length) including

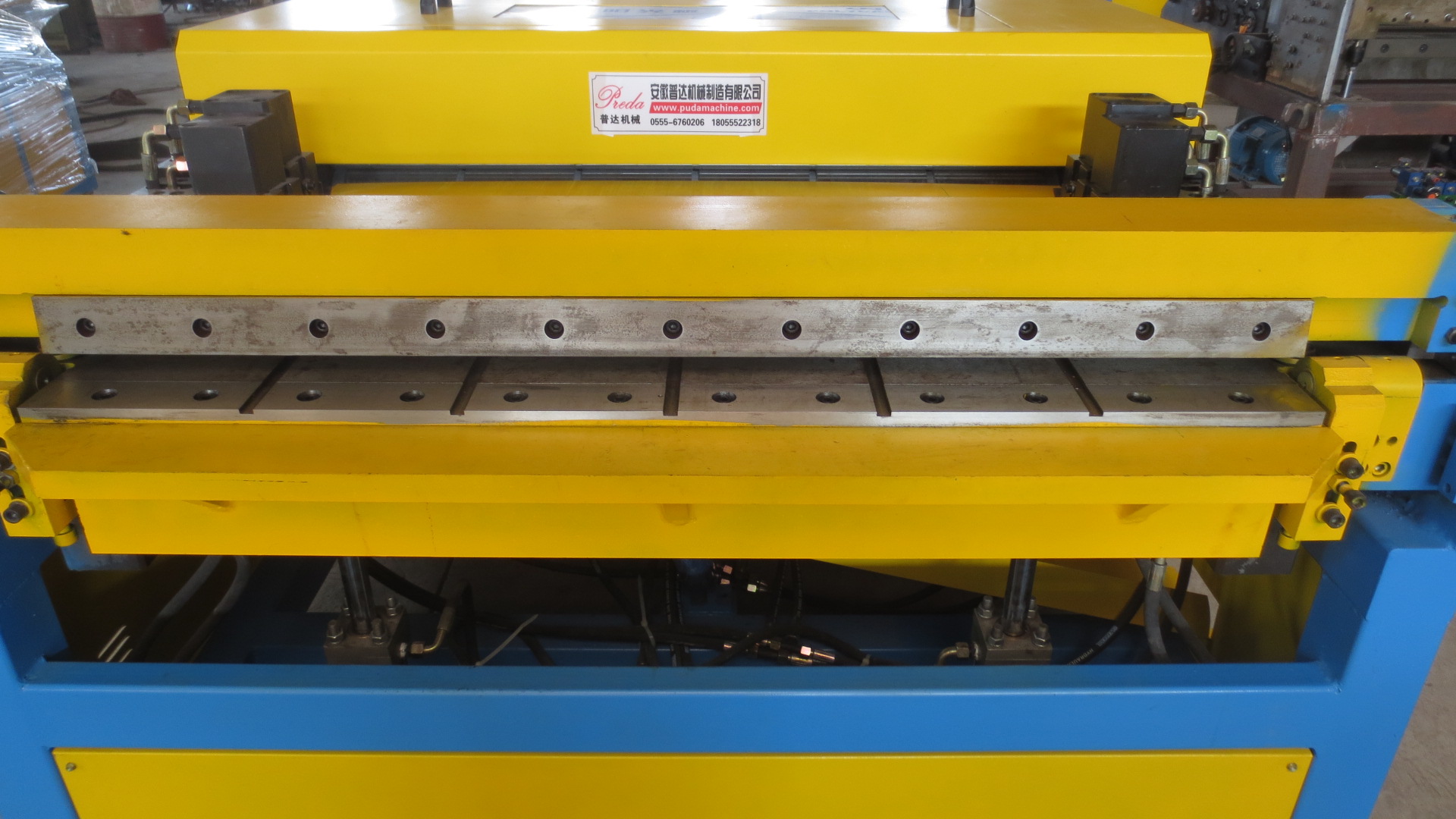

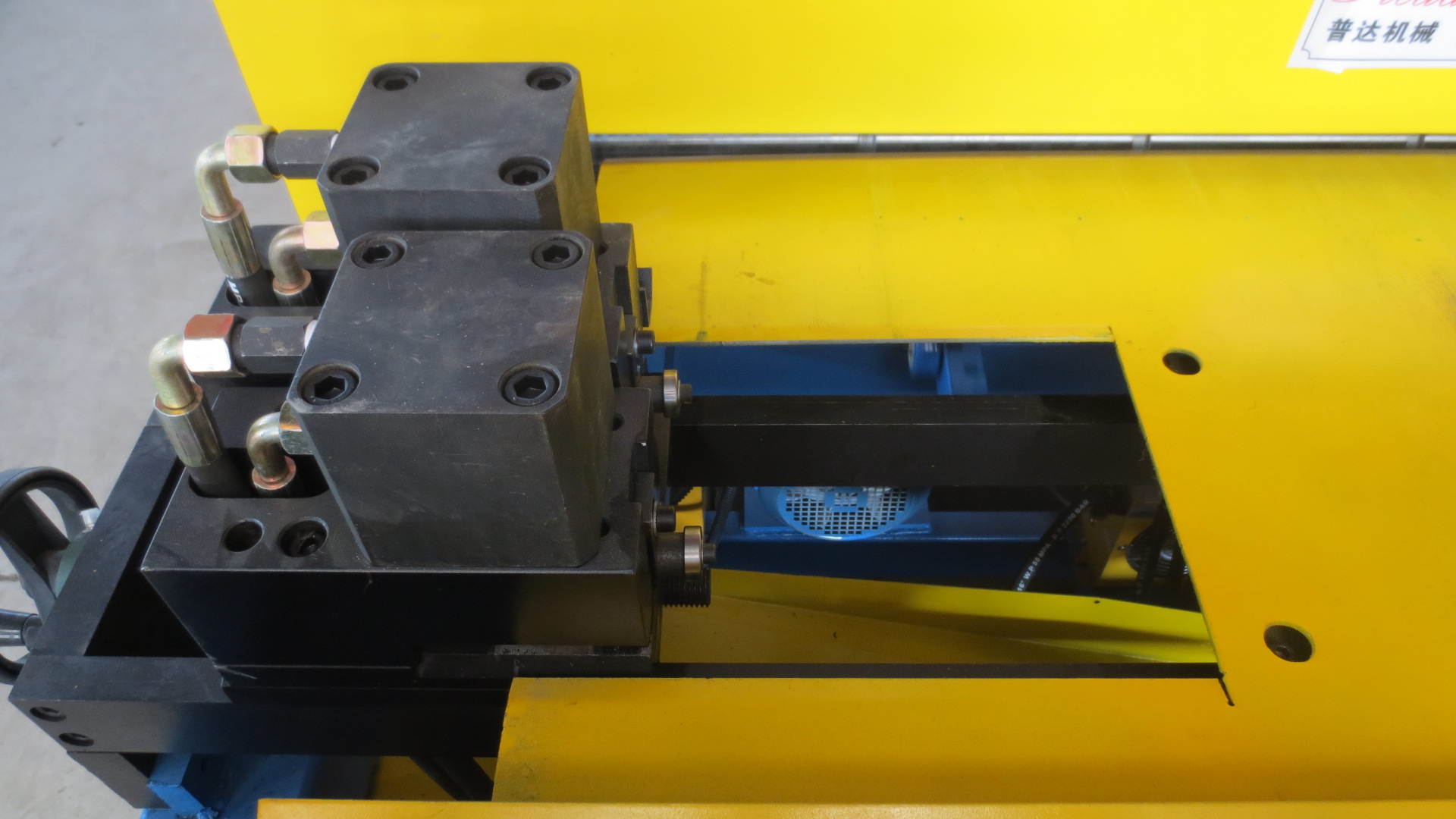

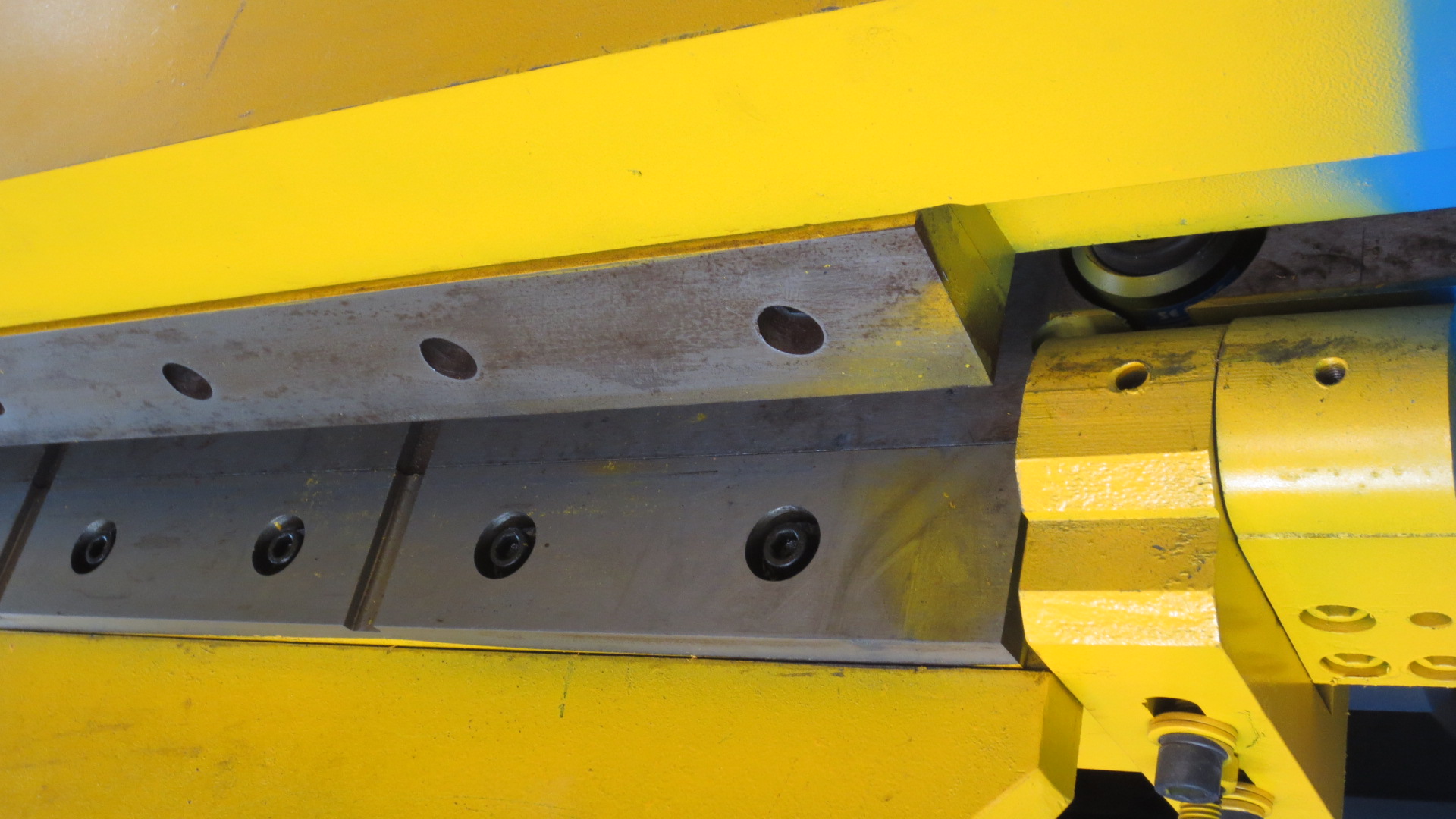

Electrical uncoiler for two rolls+leveling&grooving+notching+shearing+folding+PLC computer&software(English version)
Payment: 30%down payment before production and balance before shipment.
Lead time: 15-20days after order confirmation.
Intalation and after-sale policies: We are able to provide technician for instalation and after-sale services to your country when required.
But buyer should pay all the expences of the relavant trip tickets,hotels,meals and salaries during the time.
Type: AML-III
Working metal sheet thickess: 0.5-1.2mm
Max. working speed: 16m/min.
Max. working width: 1300mm
Uncoiler capacity: 6000KG*2
Dimension: L*W*H 5000*2160*1450mm
Total weight: 3500KG
